概述
|
 |
 |

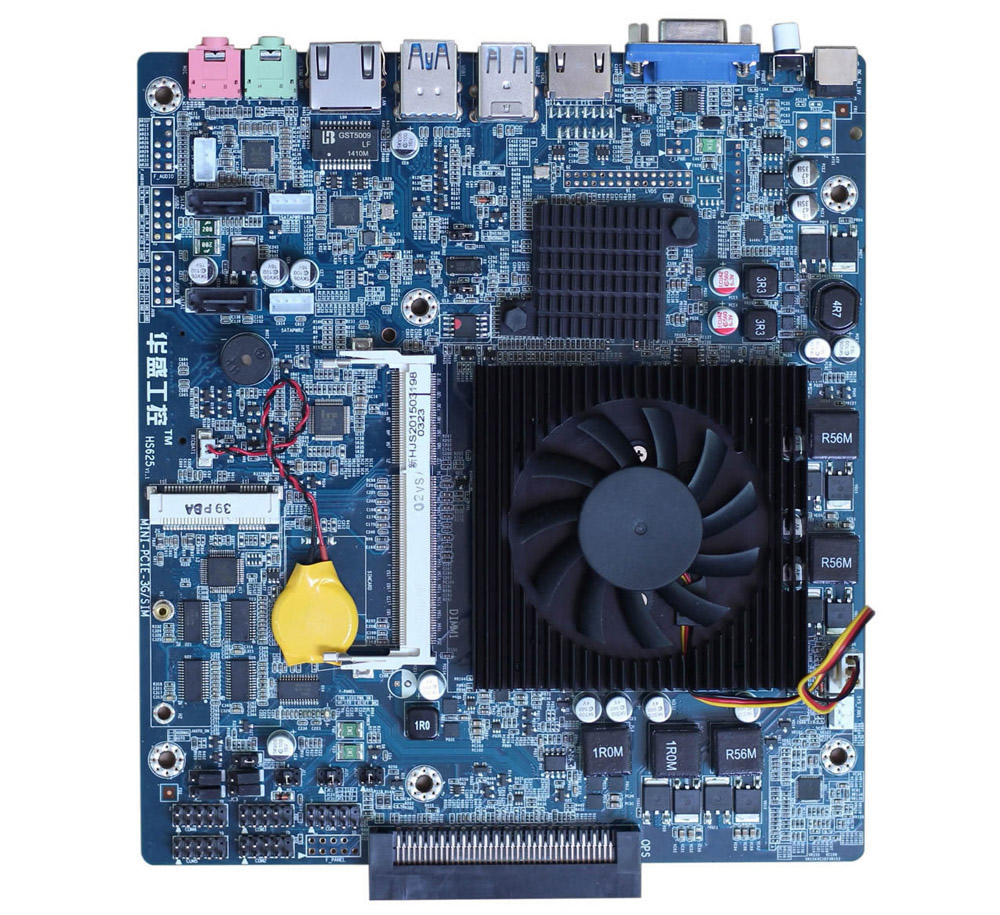

| 型号 Model | - OPS -NM 70-I3 |
| 尺寸标准 Mechanical standard |
- Industrial Motherboard - 170 mm ( 6.7″) x 170 mm ( 6.7″) |
| 芯片组 Chipset | - Intel NM70 |
| 处理器 Processor | - Intel Core I3 2350M |
| 主板程序 Bios |
- AMI BIOS - 32 MBIT SPI BIOS |
| 内存 Memory |
- 1 x DDR3 1066 / 1333 / 1600 MHz DIMM |
| 显卡 Graphics |
- Intel Hd 3000 - Display:VGA + HDMI + LVDS( 2channel / 24bit)( Dual Display) |
| 网卡 LAN | - 1 x Realtek 8111E1000M |
| 音频 Audio |
- Realtek ALC269 HD Audio Decoding controller |
| 串口 COM | - 1 x COM ( RS232 / Pin header ) |
| USB |
- 2 x USB 3.0 - 2 x USB 2.0 - 4 xPin interface / 4 xOn -board interface |
| 存储 Storage | - 2 x SATA 2.0 Connector ( 3Gb /s ) |
| 扩展槽 Expansion Socket |
- 1 x Mini PCIE ( For 3 G&WIFI ) - 1 x Mini PCIE ( MSATA SSD ) - 1 x SIM |
| 键盘/鼠标 Keyboard/ Mouse | - Support USB Keyboard / Mouse |
| 电源 Power supply |
- 1 x DC Jack -At Ieast 19V 2.5A DC input - To support more than 77W |
| 工作条件 Working condition |
- Operation Temperature -10-80℃ - Operation Humidity 10%-90% Relative Humidity - Non-Condensing |
